e01 ZERO

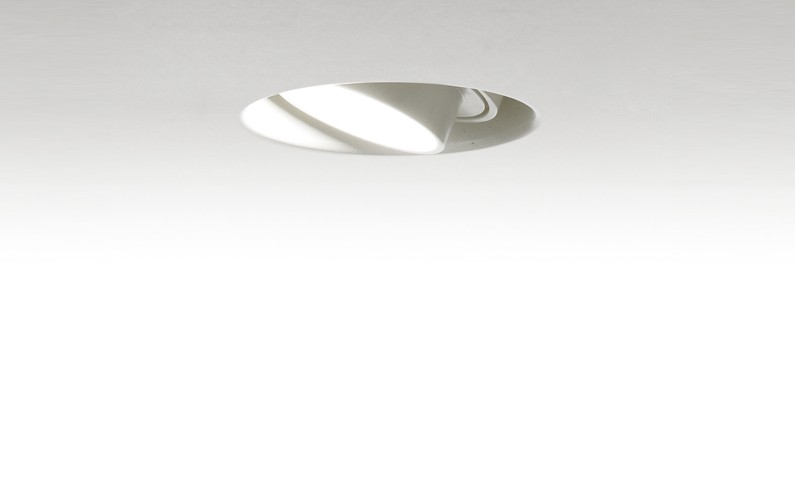

A recessed adjustable, die-cast, aluminium alloy luminaire assembly for a completely frameless flush mounting and seamless integration into surfaces.

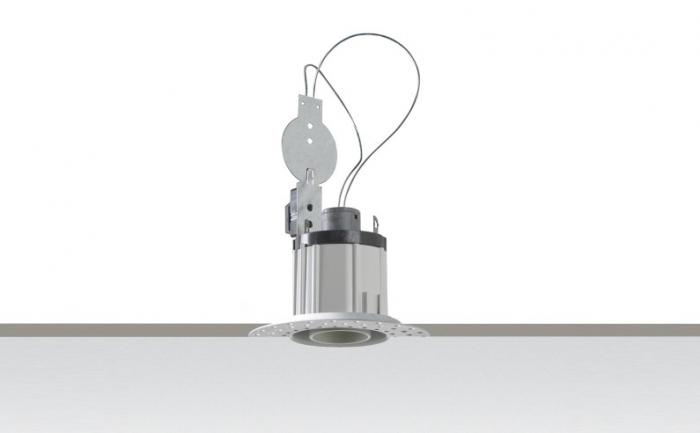

The luminaire assembly comprises a special mounting plate which allows flush installation into plasterboard ceilings. The die cast aluminium body is designed to take a range of lamps and optical systems and can be moved forwards and backwards in the mounting to alter the visible cut-off.

Adjustments allow 355deg rotation and 20deg tilt from the vertical position.

A range of filters, lenses and anti-glare grids are available for  luminaires with optics.

Part of the elementi modular system.

Part L compliant in the LED and Metal Halide versions

Manufacturer:	Elementi
Designer:	Habits Studio Design
Year:	2008
Colour/Finish:	Metallised Grey Polished Aluminium White
Dimensions:	W 0 x D 7.4 x H 19.9 cm
Diameter:	7 cm
Cutout:	9.5 cm
Category:	Architectural
Type:	Downlight Adjustable
Classification	IP20
Lamp Type:	Metal halide Low voltage halogen GU5.3 Mains voltage halogen GU10 LED
Energy Rating:	A, A, D, E
