OCCHIO SENTO HEAD RANGE

Non-specific -centre

The SENTO head is a system within a system and comprises a collar into which various elements and accessories may be inserted on each side of it, using a spring location system. The head rotates 360 degrees enabling the light to be aimed in any direction around its axis

The elements enable a variety of lighting performances using a satinised glass diffuser for a soft distribution, an optical glass lens and three reflectors for a more controlled lighting performance and a metal cover for one-sided lighting.

The optical lens produces a beam of approximately 85deg

Reflectors are 20deg, 30deg, 40deg

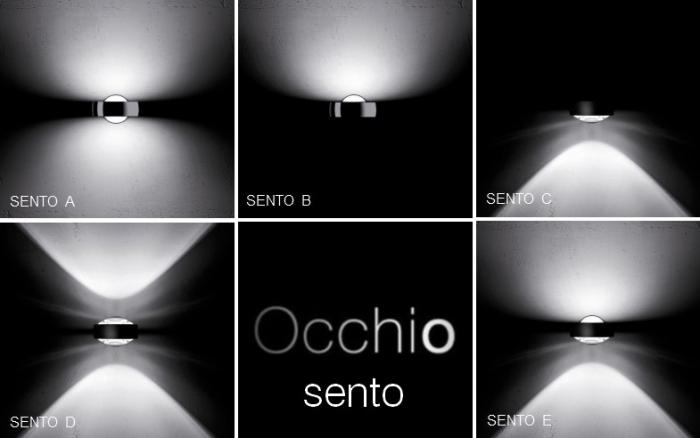

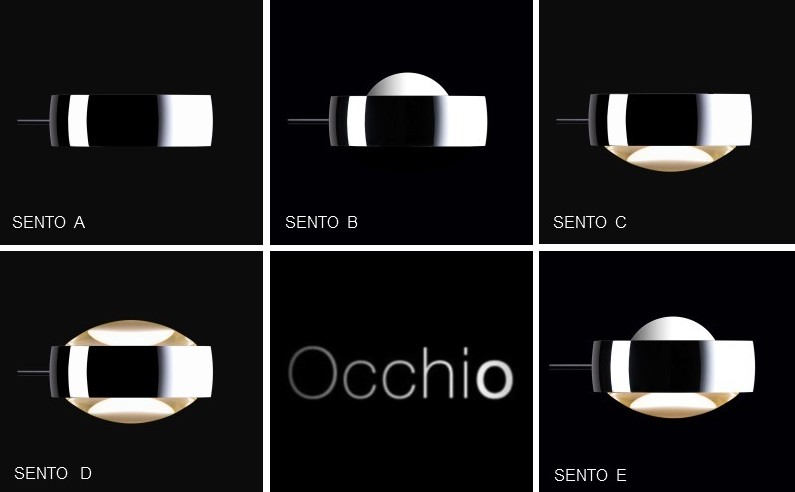

A = Diffuser / Diffuser     B = Diffuser / Shield    C = Shield / Lens    D =  Lens / Lens    E = Diffuser / Lens

The accessories create lighting effects when used with the other elements and include five dichroic colour filters, a light divider to seperate the effect when used with a colour filter and a 'black' glass used as a decorative light shield.

The mounting types include wall, ceiling, floor, table, pendant and track-mounted options in fixed and adjustable versions.

Manufacturer: Occhio
Designer: Axel Meise
Year: 2010
Colour/Finish: Polished Chrome
Matt Chrome
White
Black
Dimensions: W 0 x D 0 x H 3.7 cm
Diameter: 12 cm
Category: Architectural
Decorative
Type: Track mounted, Pendant suspension, Freestanding, Ceiling / Wall
Classification IP20
Lamp Type: CDM Metal halide G8.5 clear
Low voltage halogen IRC GY6.35
Mains halogen b15d Eco clear
Energy Rating: A, B, C
